Shandong Famousbrain Heavy Industry Machinery Co., Ltd.
goods
Mingnao Heavy Industry

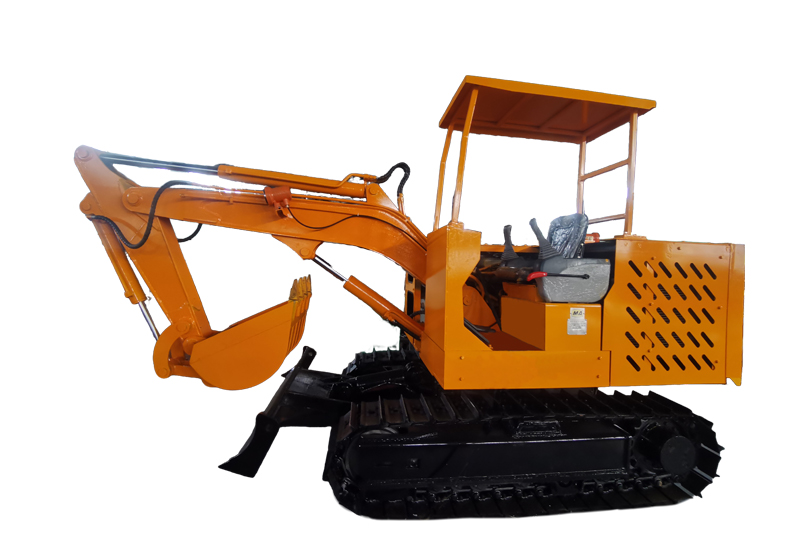

| Project | Unit | WPZ-55/1000L |
| working body | / | Two section arm |
| Motor power | kw | 45kw |
| bucket capacity | m3 | 0.35m3±0.02 |
| digging radius | mm | ≥4980mm |
| Excavation depth | mm | ≥2620mm |
| Excavation height | mm | ≥5535mm |
| Dumping height | mm | ≥4130mm |
| Body rotation angle | 。 | 360。 |
| Walking form | / | Crawler walking |
| ground pressure | Mpa | ≤0.1Mpa |
Product Features:
1. It has the characteristics of compact structure, energy saving, low noise, and high efficiency, and is suitable for excavation, contour repair, undercover, crushing, cleaning floating coal, slag removal, leveling tunnels, and loading operations in coal mine section tunnels. It has good disassembly and is easy to relocate and transport underground.
2. The boarding platform can rotate 360 degrees.
3. Equipped with a vehicle mounted methane power-off device, automatic power-off is achieved when the underground gas concentration exceeds the standard.
4. Equipped with a bulldozer shovel to level the roadway floor and stabilize the machine body.
5. The hydraulic system adopts well-known brand load sensitive control technology to reduce energy consumption.
