Product Advantages:
The Multifunctional Mucking Loader stands as a pinnacle of crawler-driven engineering, designed to excel in intensive excavation and material handling across challenging terrains.
Outfitted with a top-tier hydraulic pilot control system, the loader achieves remarkable precision and smooth operation. This system integrates intuitive handling, enhanced responsiveness for improved accuracy, and outstanding durability, empowering operators to perform complex maneuvers with confidence. The innovative hydraulic design minimizes operator strain while upholding both safety and precision in demanding environments.
Product description:

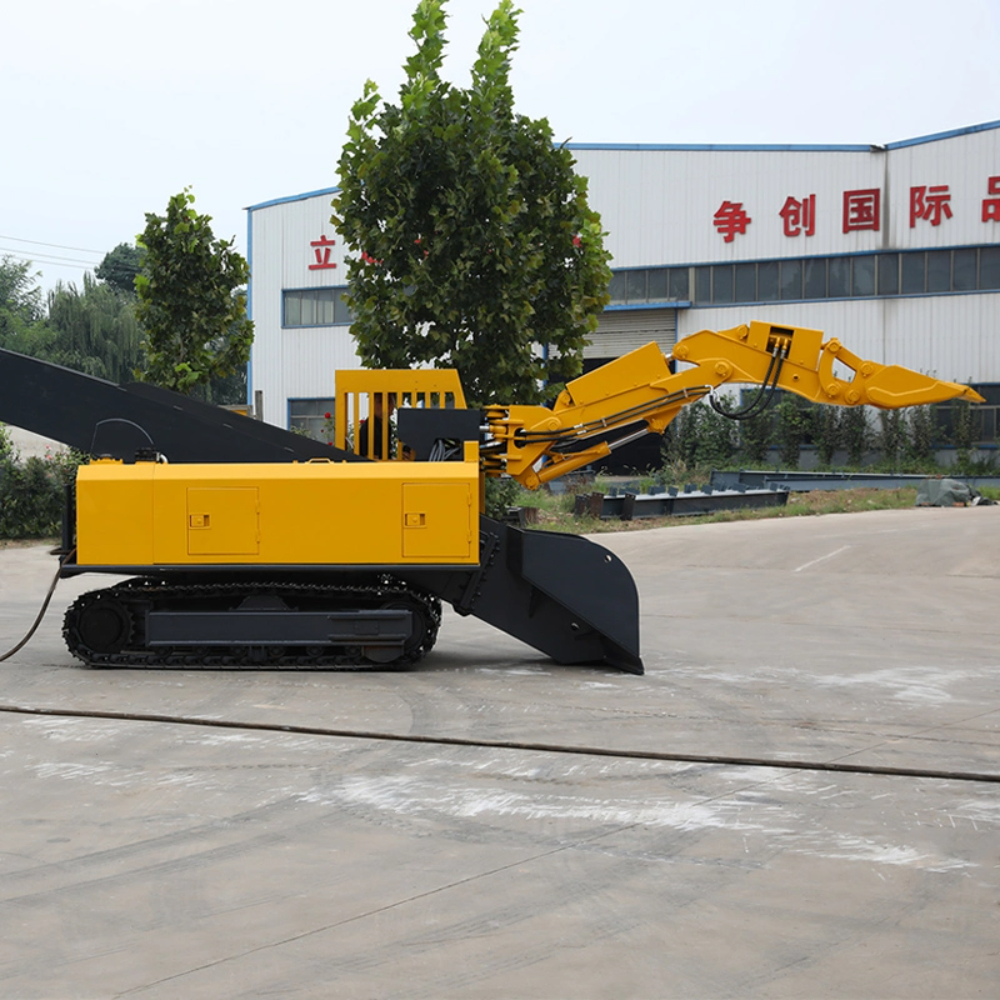

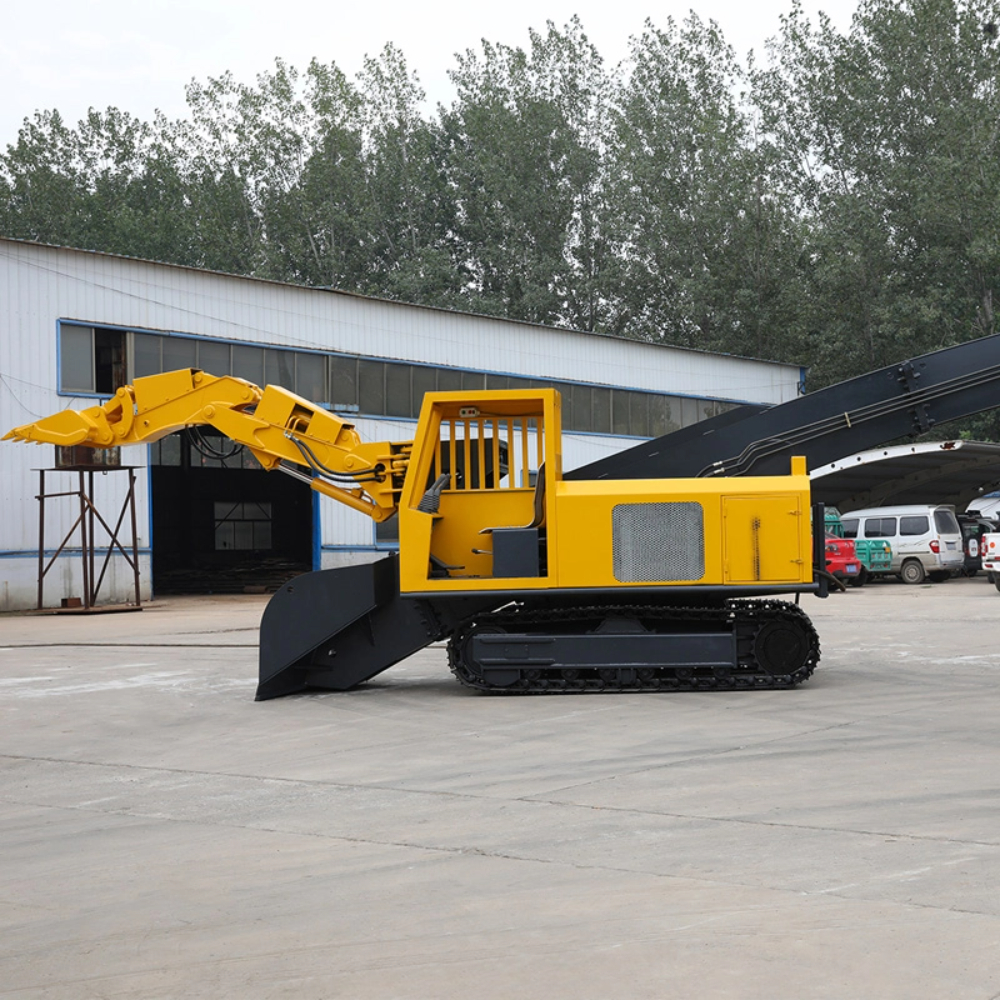

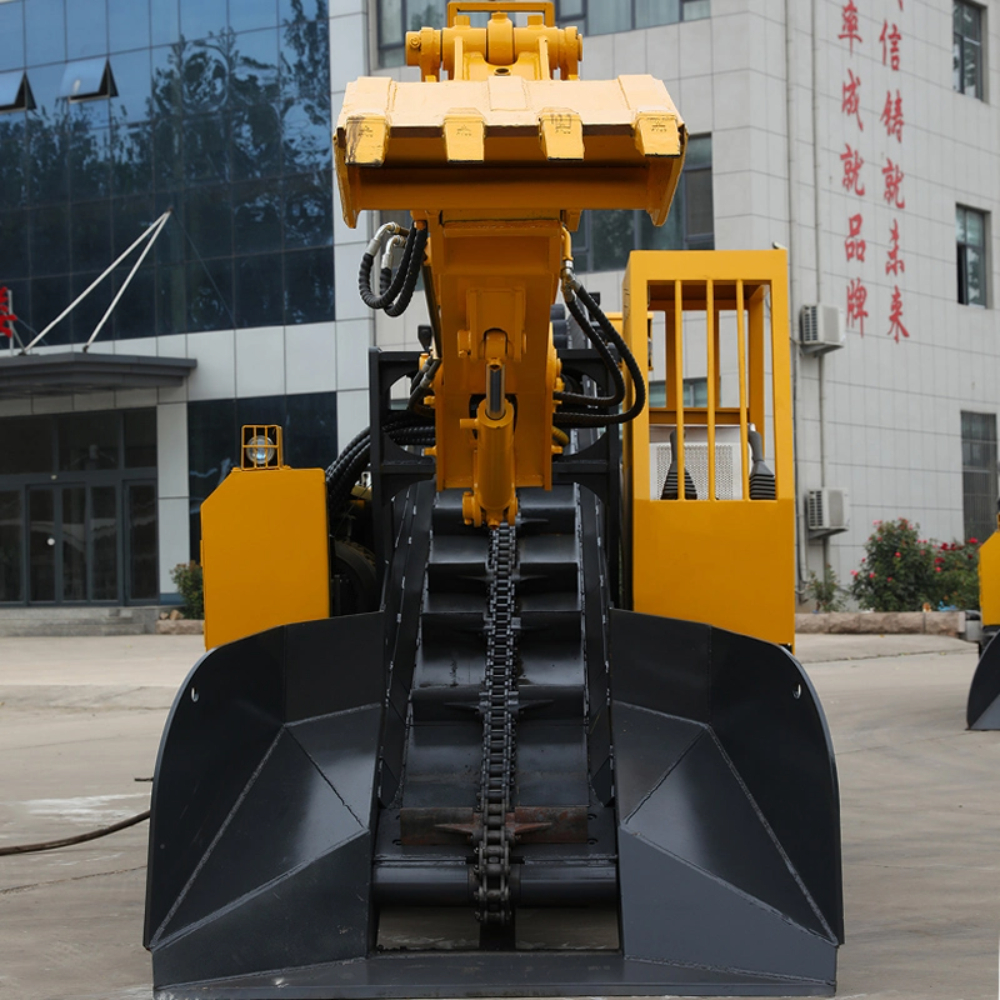

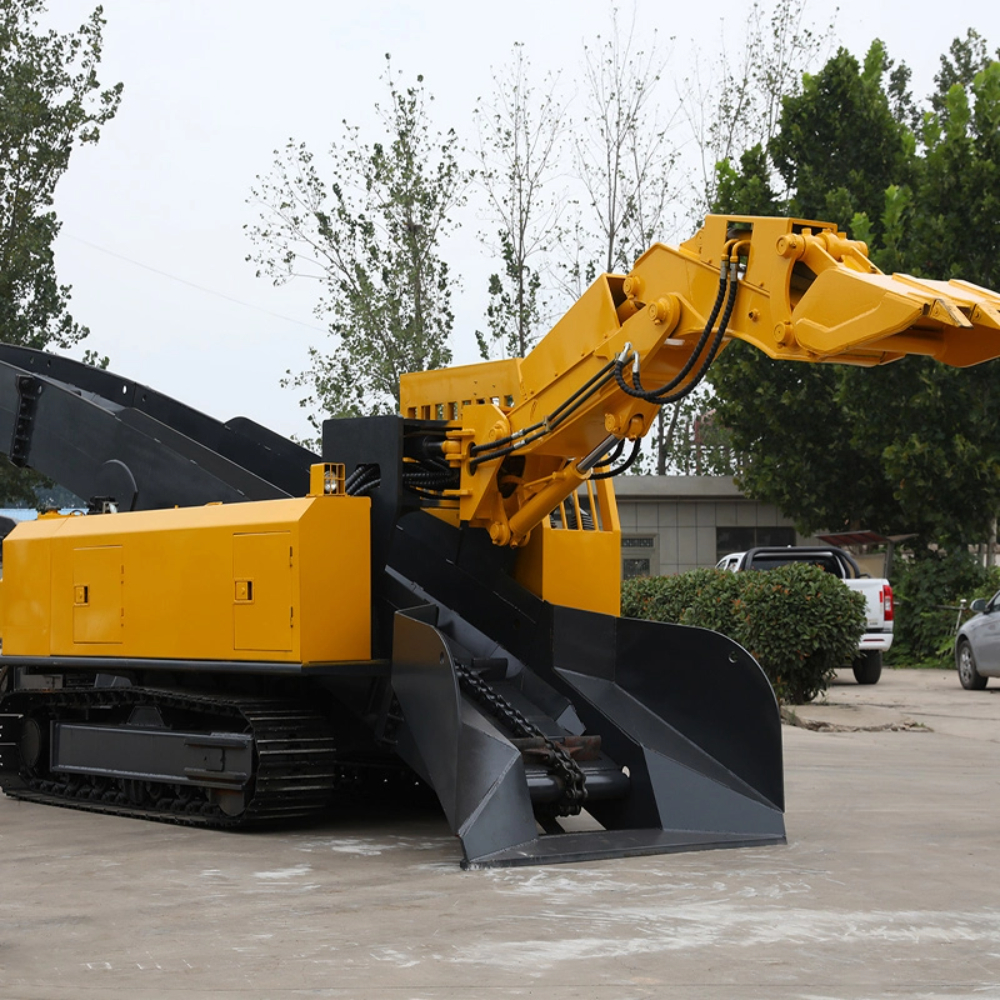

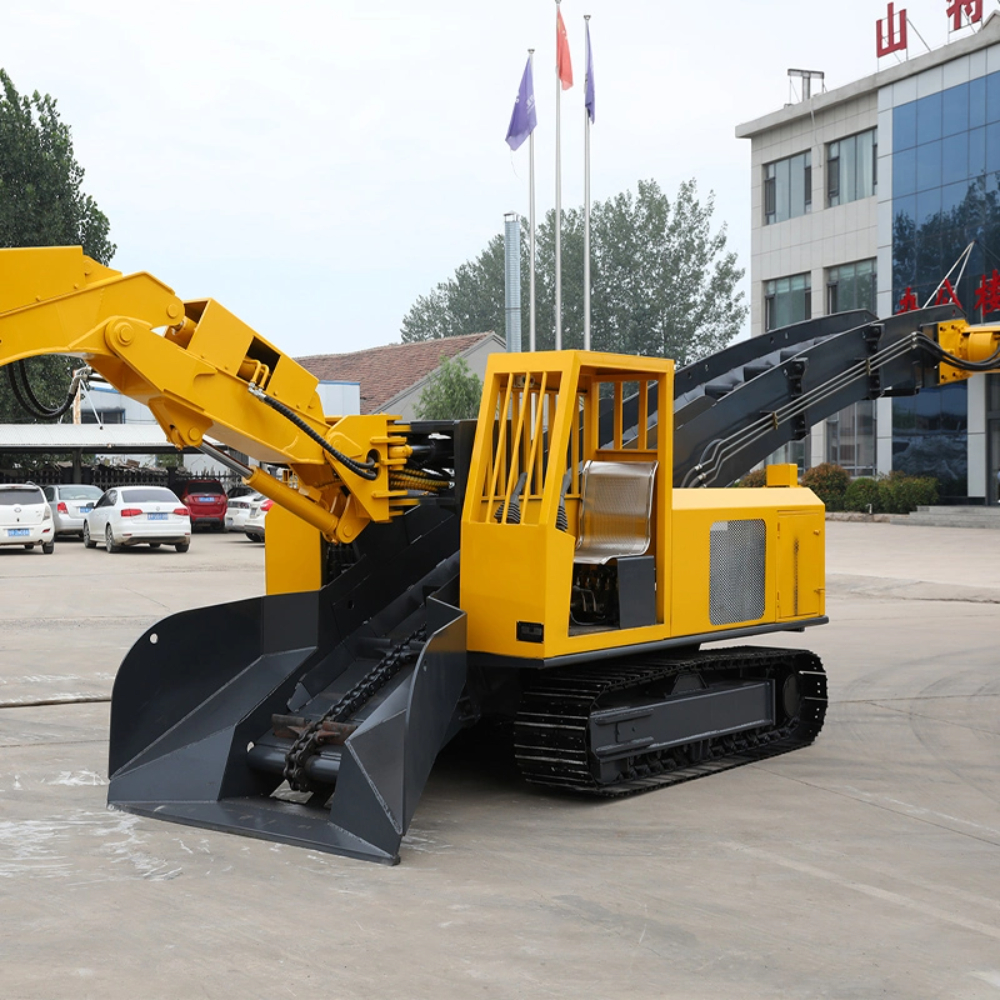

The Multifunctional Mucking Loader represents the pinnacle of crawler-based engineering, designed to perform at the highest level in demanding excavation and material handling tasks on rugged terrains. Its durable crawler chassis provides outstanding traction and a broad operational range, ensuring that every rock is efficiently loaded without leaving any debris behind. With automated features that remove the need for manual cleaning, workflow efficiency is greatly enhanced, while its capability to swiftly remove hazards and execute precise trenching renders it indispensable for mining, tunneling, and large-scale infrastructure projects.
Equipped with a premium hydraulic pilot control system, the loader delivers exceptional precision and seamless operation. This system combines intuitive control with enhanced responsiveness and remarkable durability, enabling operators to confidently execute complex maneuvers. The innovative hydraulic design minimizes operator fatigue while ensuring safety and accuracy even in the most demanding environments.
Powered by a hybrid diesel-electric system, the loader is well-equipped to meet a wide array of operational challenges while aligning with sustainability objectives. Its modular design supports the seamless integration of specialized attachments—ranging from demolition breakers and grading implements to custom buckets—allowing the machine to be precisely tailored to specific project needs. This flexibility enables the loader to transition effortlessly between deep-mining operations and surface-level construction, providing superior efficiency and unmatched versatility.
| Project | Unit | ZWY-120/55L |
| Weight | T | 14.8/16.8 |
| Overall dimension(L*W*H) | mm | 6500×2000×2300 |
| Loading Capacity | m3/h | ≈120 |
| Ground Clearance | mm | 270 |
| Nominal working pressure | mpa | 25/35 |
| Traveling Speed | km/h | 2.15/3.8 |
| Motor Power | Kw | 45/55 |
| Max size materials can pass through（L*W*H） | mm | 800*780*700 |
| Applied tunnel gradient | ° | ≤18（Adapt to the ground） |
| Applicable section(W*H) | m | ≥3.0*3.0 |
| The inside track width | mm | 1100（Can be widened） |
| Transport form of scraper | Double-chain and dual-drive Single-chain and single-drive |
|
| Climbing ability | ° | ≤25（Adapt to the ground) |
| Excavating Width | mm | standard arm：5300 short arm：4800 |
| Excavating Distance | mm | ≥2200 |
| Excavating Height | mm | Standard arm：3300 Short arm：2700 |
| Excavating Depth | mm | Standard arm：700 Short arm：400 |
| Unloading Height | mm | 1913（Variable） |
| Minimum Loading Height | mm | 1680（Variable） |
| Uninstall Distance | mm | 2000（Can be lengthened） |
| Max.rotation angle | ° | ±50 |
- Applications：Cable Duct, Caverns, Construction Tunnel, Culverts, Drainage Tunnels, Hydraulic Channel Tunnel, Inclined Shaft, Military Passageways, Mine, Mining Site, Mining Tunnels, Traffic Tunnels, Tunnels, Utility Tunnels
- Industries Served：Chemical, Coal Mine, Construction, Hydropower, Metal Mine, Metallurgical, Military Engineering, Non-Metal Mine
- Scenarios：Block Load, Breaking, Convey, Dig, Excavate, Floor Clean, Muck&Load
- Loading Capacity(m³/h)：≈120
- Ground Clearance(mm Can Be Heightened)：270
- Nominal Working Pressure(mpa)：22/35
- Traveling Speed(km/h)：2.15-3.80
- Motor Power(kw)：45/55
- Max Size Materials Can Pass Through(L*W*H mm)：800*780*700
- Applied Tunnel Gradient(° Adapt To The Ground)：≤18
- Applicable Section(W*H m)：≥3.0*3.0
- The Inside Track Width(mm Can Be Widened)：1100
- Transport Form of Scraper：Double-chain and dual-drive, Single-chain and single-drive
- Climbing Ability(°)：≤25
- Excavating Width(mm)：≥4800, ≥5300
- Excavating Distance(mm)：≥2200
- Excavating Height(mm)：3300-2700
- Excavating Depth(mm)：700-400
- Uninstall Height(mm customizable)：1760
- Minimum Loading Height(mm customizable)：1680
- Uninstall Distance(mm customizable)：≥2200
- Max Rotation Angle(°)：±50
- Weight(T)：14.8/16.8
- Overall Dimension(mm L*W*H)：6500×2000×2300
- Customizable：Support Customization
| 重量 | 14816.8 公斤 |
|---|---|
| 尺寸 | 6500 × 2000 × 2300 毫米 |
| Applications | Cable Duct, Caverns, Construction Tunnel, Culverts, Drainage Tunnels, Hydraulic Channel Tunnel, Inclined Shaft, Military Passageways, Mine, Mining Site, Mining Tunnels, Traffic Tunnels, Tunnels, Utility Tunnels |
| Industries Served | Chemical, Coal Mine, Construction, Hydropower, Metal Mine, Metallurgical, Military Engineering, Non-Metal Mine |
| Scenarios | Block Load, Breaking, Convey, Dig, Excavate, Floor Clean, Muck&Load |
| Loading Capacity(m³/h) | |
| Ground Clearance(mm Can Be Heightened) | |
| Nominal Working Pressure(mpa) | |
| Traveling Speed(km/h) | |
| Motor Power(kw) | |
| Max Size Materials Can Pass Through(L*W*H mm) | |
| Applied Tunnel Gradient(° Adapt To The Ground) | |
| Applicable Section(W*H m) | |
| The Inside Track Width(mm Can Be Widened) | |
| Transport Form of Scraper | |
| Climbing Ability(°) | |
| Excavating Width(mm) | |
| Excavating Distance(mm) | |
| Excavating Height(mm) | |
| Excavating Depth(mm) | |
| Uninstall Height(mm customizable) | |
| Minimum Loading Height(mm customizable) | |
| Uninstall Distance(mm customizable) | |
| Max Rotation Angle(°) | |
| Weight(T) | |
| Overall Dimension(mm L*W*H) | |
| Customizable |
